数字IC：FSM

by WeiLin, 2019.10.15

FSM(Finite State Machine,有限状态机)在数字设计里经常被用到，之前也做过整理，这里作为补充。

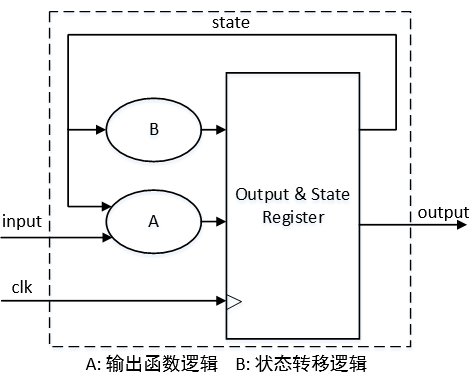

1. One Block

(Example):
reg [1:0] state;
always@(posedge clk)begin
    if(rst)
        state<=IDLE;
    else begin
        case(state):
            IDLE:begin
                out<=0;
                state<=in?STATE1:STATE2;
            end
            .....
        endcase
    end
end

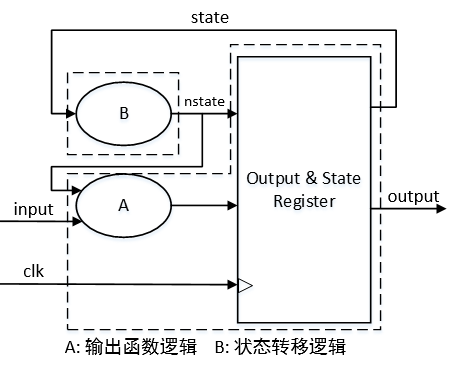

2. Two Block

(Example):
reg [1:0] state,nstate;

always@(*)begin
    case(state)
        IDLE:nstate=in?STATE1:STATE2;
        .....
    endcase
end

always@(posedge clk)begin
    if(rst)begin
        state<=IDLE;
        out<=0;
    end
    else begin
        state<=nstate;
        case(nstate)://注意这里是nstate
            IDLE:out<=0;
            .....
        endcase
    end
end

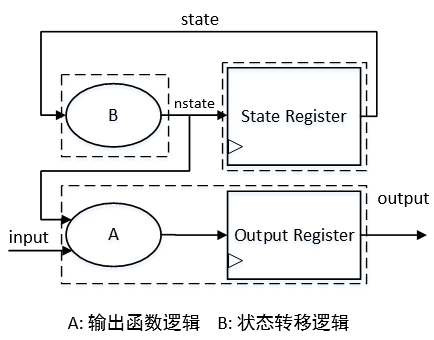

3. Three Block

(Example):
reg [1:0] state,nstate;

always@(*)begin
    case(state)
        IDLE:nstate=in?STATE1:STATE2;
        .....
    endcase
end

always@(posedge clk)begin
    if(rst)
        state<=IDLE;
    else
        state<=nstate;
end

always@(posedge clk)begin
    if(rst)
        out<=0;
    else begin
        case(nstate)://注意这里是nstate
            IDLE:out<=0;
            .....
        endcase
    end
end

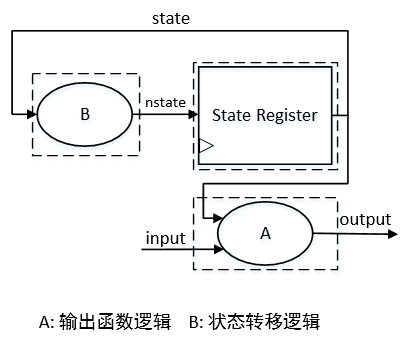

#Three Block：Combinational Output

输出应是寄存器输出，否则会有毛刺。当然组合逻辑输出也是可以的,示例代码如下。需要注意的是case的状态是当前状态state，而非前面的nstate，这是因为组合逻辑在当前时钟周期下就可输出，而非像寄存器输出那样需要等到下一周期才输出。

(Example):
reg [1:0] state,nstate;

always@(*)begin
    case(state)
        IDLE:nstate=in?STATE1:STATE2;
        .....
    endcase
end

always@(posedge clk)begin
    if(rst)
        state<=IDLE;
    else
        state<=nstate;
end

always@(posedge clk)begin
    if(rst)
        out<=0;
    else begin
        case(state)//注意这里是state
            IDLE:out<=0;
            .....
        endcase
    end
end
